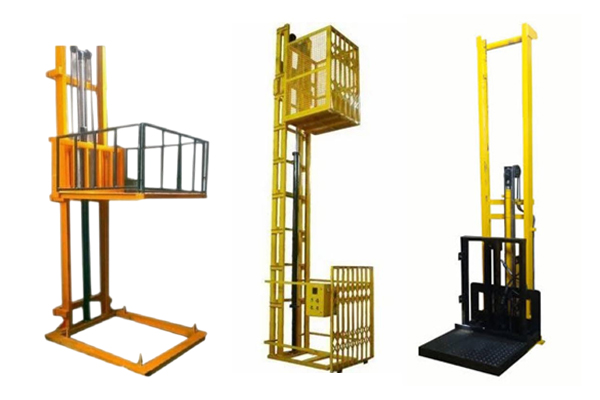

Electro-Hydraulic Goods Lift -Single Mast
Electro-Hydraulic Goods Lift
General:

Manufactured as per international standards & robust enough to operate in domestic conditions, these productivity enhancement material handling equipment serve several applications. Light duty compact type Single Mast Hyd. Goods Lifts used for indoor installation in factory & warehouse to carry goods.

Application:
  • Widely used to transfer material from one floor to another. It is to be installed with wall support at the one side & rest 3 sides can be used for loading & unloading purposes.
Note:
  • 100% customization is possible
  • Flameproof controls are available.

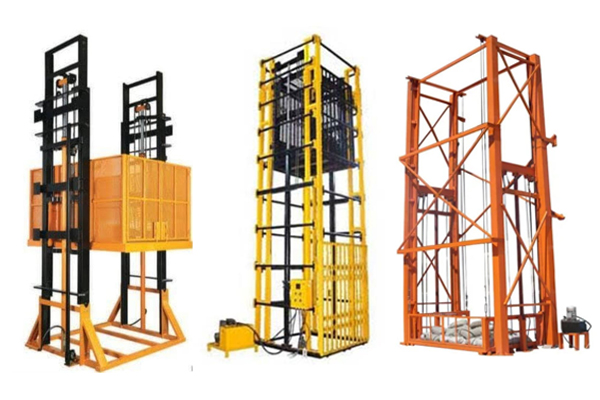

Electro-Hydraulic Goods Lift -Dual Mast
Electro-Hydraulic Goods Lift-Dual Mast
General:

Manufactured as per international standards & robust enough to operate in domestic conditions, these productivity enhancement material handling equipment serve several applications. Heavy duty compact type Dual Mast Hyd. Goods Lifts used for indoor installation in factory & warehouse to carry goods.

Features:
  • Man Power Reduction
  • Less Time Consumption
  • Very Smooth Conveyance
  • Robotically Welded Structure.
  • Easy to clean resulting in longer life to components.
  • Single push button control & eliminates any potential accident.
Application:
  • Widely used to transfer material from one floor to another. It is to be installed with wall support at the two sides & rest 2 sides can be used for loading & unloading purposes.
Note:
  • 100% customization is possible
  • Flameproof controls are available.

Single Mast Product Range:
Specification Details
Model HA-SMGL
UDL Capacity 500 – 3000 Kgs
Platform Lift Height 2000mm to 10000mm
Platform Size (L x W) 1500 x 2000mm, 3000 x 3000mm
Option 1 Standard Safety Railing or MS Cage with Door Interlocking
Option 2 Pit Mounted or Floor Mounted Installation
Dual Mast Product Range:
Specification Details
Model HA-DMGL
UDL Capacity 500 – 3000 Kgs
Platform Lift Height 2000mm to 10000mm
Platform Size (L x W) 2000 x 2500mm, 3000 x 3500mm
Safety Option Standard Safety Railing or MS Cage with Door Interlocking
Installation Option Pit Mounted or Floor Mounted Installation
