Sortation Solutions

HA manufactures a sorting & grading unit for small shims. The HA sorting and grading Unit is designed to feed, sort and grade components like shims which require to be graded according to their thickness.

• This unit operates a speed in excess of 150 pieces per minute, depending on the size of the components.

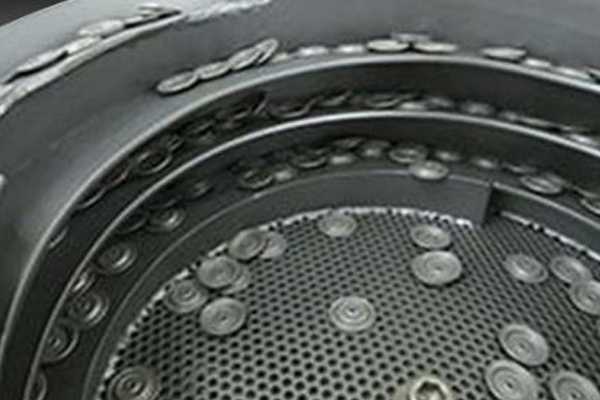

• The system utilizes an HA vibratory bowl feeder to feed the parts to a set of powered gauge rolls.
• These are powered by an geared motor of suitable rating. The inclination of the rolls, plus adjustable roll spacing from one end to the other enables parts to move / travel easily and rapidly into the desired position, while moving them to the discharge point.
• Undersized parts are first separated, followed by those within tolerance. Oversize and damaged or oversize parts continue to the end of the rolls and are discharged into a separate container.
• An important feature is that the rolls being counter-rotating does not bind or grip the parts and are extremely sensitive to fine tolerances.
• The basic unit works on a fixed speed, however, optionally HA can also offer sensor and a variable speed AC or DC motor fitted with an HA reduction unit.
• This unit offers high flexibility for the user and can also be used for sorting and grading of balls, taper rollers, pins and similar components.
