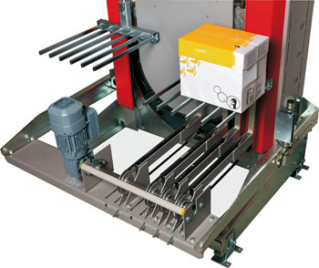

Vertical Reciprocating Conveyors (VRC)

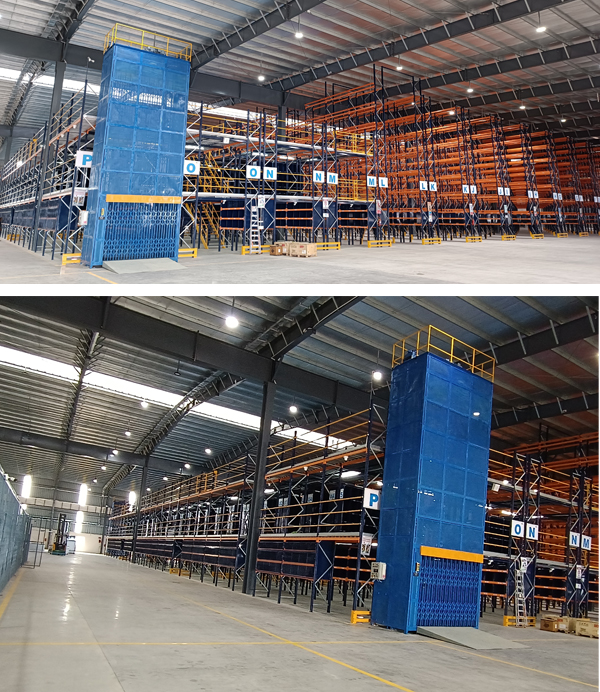

Hindustan Automation VRC is widely used to move the material from one floor to another floor with great safety. It is a self-supported free standing structure.

• HA 2post VRC: Series TWO POST VRC is available with lifting capacity upto 2000 Kgs, carriage size 1500x1500mm & Vertical Travel Height upto 16.0 meters. No. of Stops - G+1 / G+2/G=3 etc
• HA 4post VRC: Series FOUR POST VRC is available with lifting capacity upto 2500 Kgs to 5000 Kgs, carriage size is customized & Vertical Travel Height upto 30.0 meters. No. of Stops - G+1 / G+2/G=3 etc

Modular design with MS tubular structure with T GUIDE & vertical H beams. Carriage is MS fabricated tubular structure with checkered platform. Carriage is covered with MS perforated sheet at non –operating sides, operating sides are provided with collapsible doors. Vertical structure has provided with MS bracing & can be also covered with MS perforated sheet optionally.

Carriage lifting & lowering movement is controlled with SEW/NORD Fail safe motor & speed reduction gear box with the help of chain & sprocket mechanism.

2nos of spring loaded safety cams are provided to arrest sudden fall of the carriage due to failure of lifting chains. Bottom Safety Limit Switch provided to prevent carriage from hammering the ground in case of failure of the level floor limit switch.

Chain tensioner limit switch provided to stop the carriage in case of lifting chains are pulled out due to any external obstruction in the upward / downward movement of the carriage. Top safety counter weight limit switch provided to cutoff the main power supply in case the carriage does not stop due to the failure of top floor level limit switch. Landing station collapsible doors are interlocked with electromechanical limit switches. Common contractor is provided to cut off the main power supply if the up/down contactor is failed.
