General:

Manufactured as per international standards & robust enough to operate in domestic conditions. A range of hydraulic dock ramp for loading containers. Ideal for loading & unloading operations using forklift trucks, stackers or pallet trucks into trucks & containers directly from factory shop floors.

Structure:
  • Robotically Welded Structure.
  • Easy to clean resulting in longer life to components.
  • Single push button control & eliminates any potential accident.
  • Superior structural support & level interface with floor.
  • Best in class Strength, efficiency & safety.
Application:
  • Used to bridge the height difference between the shop floor & vehicle platform. This equipment can be carried from one place to another with help of forklift. Mostly used for container loading & unloading by forklift.
Note:
  • Hydraulic Control is available with AC power pack
  • CUSTOMIZED EQUIPMENT CAN BE OFFERED
  • Flameproof controls are available.li>

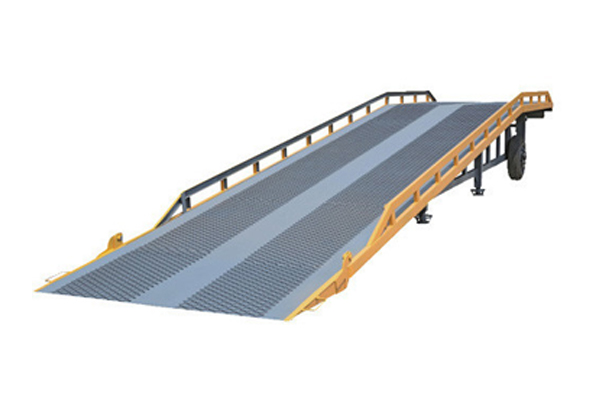

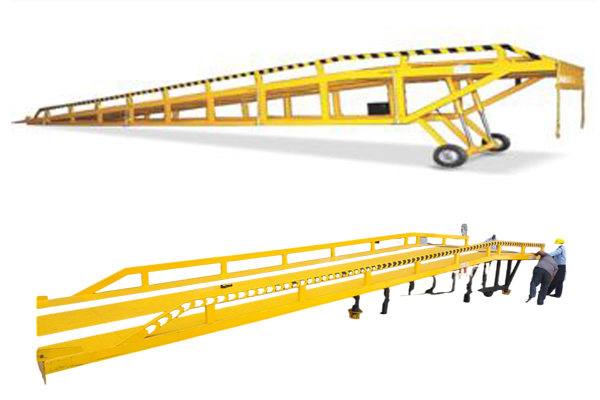

Mobile Dock Ramp Mobile Dock Ramp

Product Range:
Specification HA-DR 1 HA-DR 2 HA-DR 3 HA-DR 4
Capacity 6000 Kg 10000 Kg 12000 Kg 15000 Kg
Overall Length 10300mm 11800mm 13100mm 13100mm
Overall Width 2080mm 2080mm 2100mm 2100mm
Incline Length 6000mm 7500mm 7500mm 7500mm
Platform Length 3000mm 3000mm 3000mm 3000mm
Total Lift Height 1700mm 1700mm 1700mm 1700mm
Min. Height 1000mm 1000mm 1000mm 1000mm
Tyres Solid Rubber Solid Rubber Solid Rubber Solid Rubber
Operation Manual Hydraulic Hand Pump Manual Hydraulic Hand Pump Manual Hydraulic Hand Pump Manual Hydraulic Hand Pump
